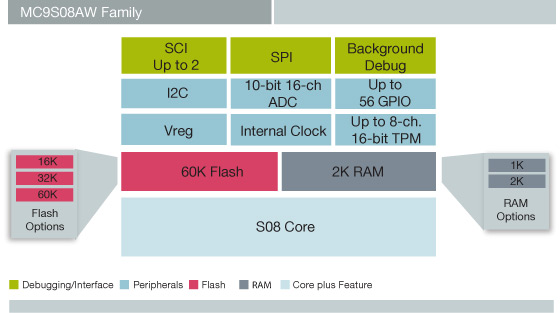

Freescale Semiconductor HCS08AW Block Diagram

The HCS08AW targets home appliances, kitchen appliances, automotive body electronics, LIN applications, watchdog coprocessors, industrial control, security systems, lighting control systems. The MC9S08AW family introduces 5-volt capability to the S08 devices. This continuation of Freescale's high-end 8-bit microcontroller offering is a suitable upgrade for developers using HC08AZ60. It offers a high pin count along with high-performance analog, including improved ADC, enhanced LVD and multiple communications modules.

This family brings together design functionality and maximum flexibility. Key features include the S08 core, 5-volt capabilities, multiple memory options—up to 64-kbyte flash, 2-kbyte RAM, High-resolution analog—16-channel, 10-bit with enhanced LVD, Multiple communications options—I²C, SPI, dual SCI, 2-channel, 16-bit and 6-channel, 16-bit timer—both capable of PWM generation for motion control applications, COP, LVI, KBI, POR, BDM module and an internal clock generator. There is pin compatibility with HC08AZ60 in some packages.
