Freescale Semiconductor
QorIQ P1022
Targets: Imaging & Video, Industrial

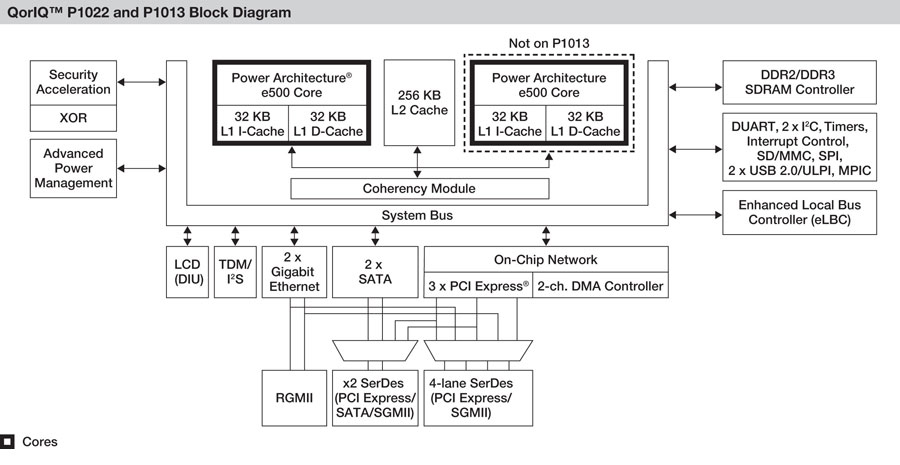

The QorIQ P1022 dual-core processor includes power management capabilities to support energy-efficient designs for embedded applications. Based on a 45-nm process technology, the device targets printing and imaging, video surveillance, storage, industrial automation, and control applications. The device features a dual gigahertz core system for concurrent applications processing, delivering networked services, media processing, and user-interface capabilities. Built on two Power Architecture cores ranging from 600 MHz to 1 GHz, the P1022 features high-speed triple PCI Express interconnects, hardware acceleration, 256-kbyte L2 cache and DDR2/3 memory options. The device integrates Serial ATA interconnect technology and SD/MMC controllers for connectivity to integrated storage devices. Freescale offers a single-core processor called the QorIQ P1013 with the same set of system peripherals, interconnect technology, and advanced power and energy management features.
